RC CellMeter-7 Digital Battery Capacity Checker Controller Tester for LiPo LiFe

Specifications:
Dimensions (Length x Width x Height) : 84 x 50 x 16mm

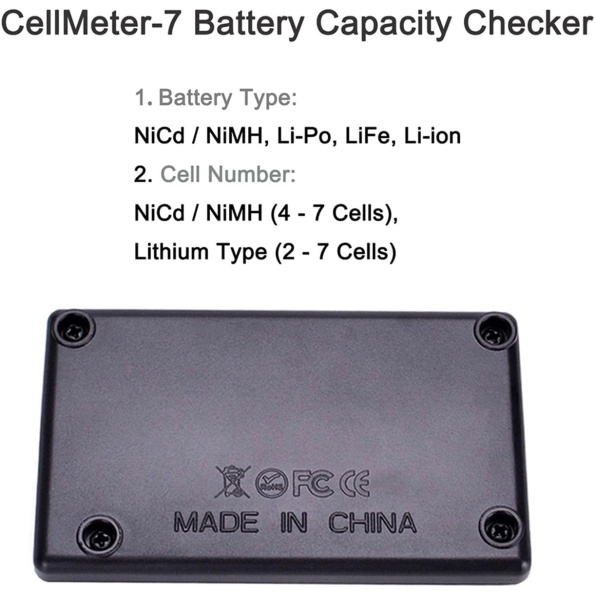

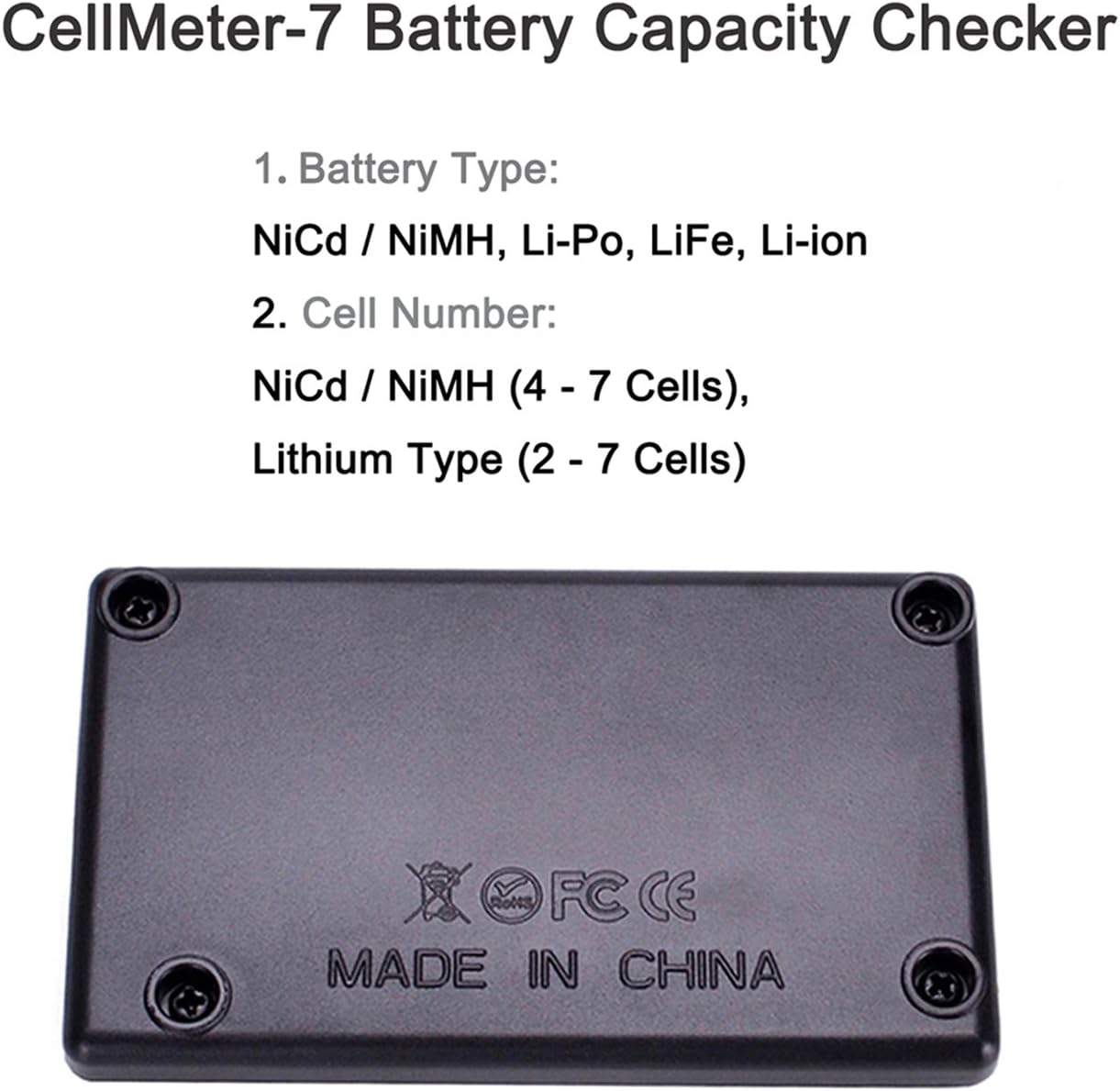

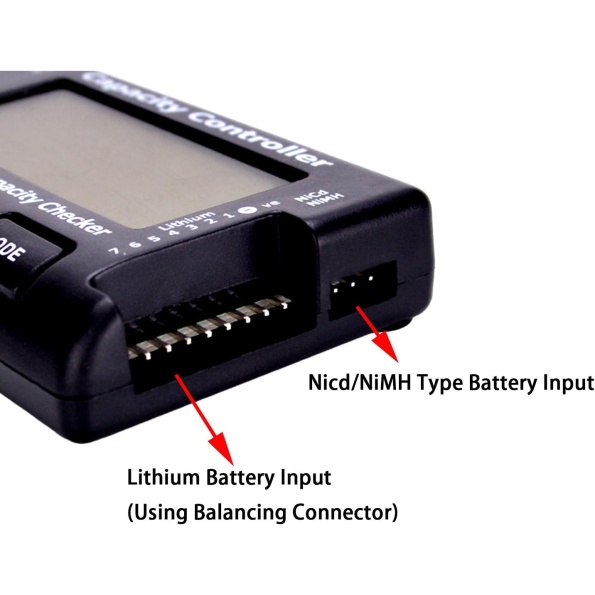

Battery Type: NiCd / NiMH, Li-Po, LiFe, Li-ion

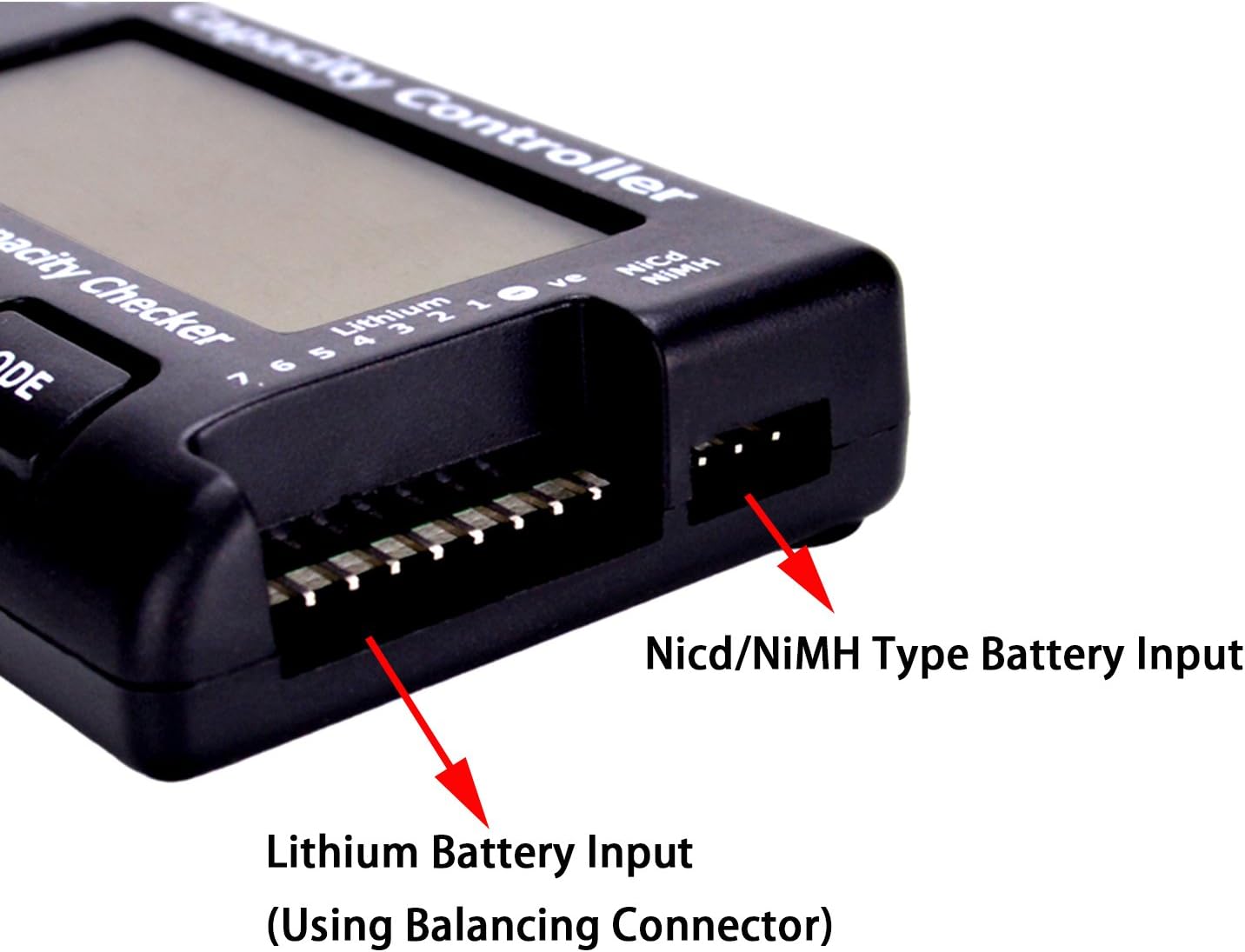

Cell Number: NiCd / NiMH (4 – 7 Cells), Lithium Type (2 – 7 Cells)

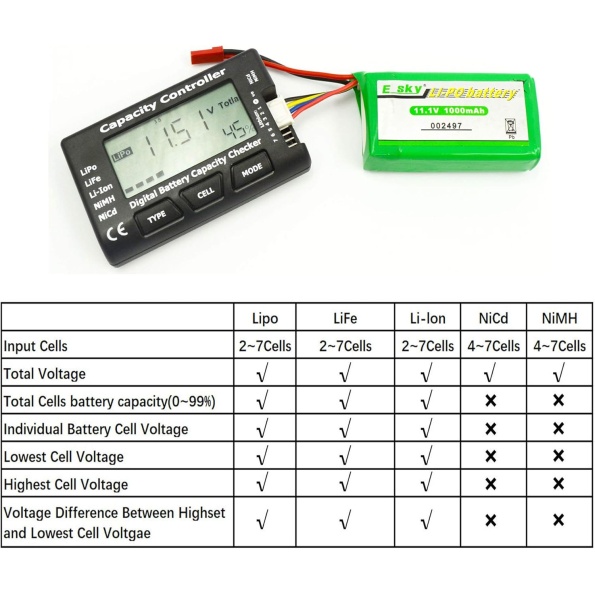

Input cells:
LIPO: 2-7 cells
LIFE: 2-7 cells
Li-lon: 2-7 cells
NiCd: 4-7 cells
NiMH: 4-7 cells
Total Voltage:
LIPO: √
LIFE: √
Li-lon: √
NiCd: √
NiMH: √
Total cell battery capacity(0-99%):
LIPO: √
LIFE: √
Li-lon: √
NiCd: ×
NiMH: ×
Individual Battery cell voltage:
LIPO: √
LIFE:√
Li-lon:√
NiCd: ×
NiMH: ×
Lowest cell voltage:
LIFE: √
Li-lon: √
Li-lon: √
NiCd: ×
NiMH: ×
Highest cell voltage:
LIFE: √
Li-lon: √
Li-lon:√
NiCd: ×
NiMH: ×
Voltage Difference Between Highest and lowest cell voltages:
LIFE: √
Li-lon: √
Li-lon:√
NiCd: ×
NiMH: ×

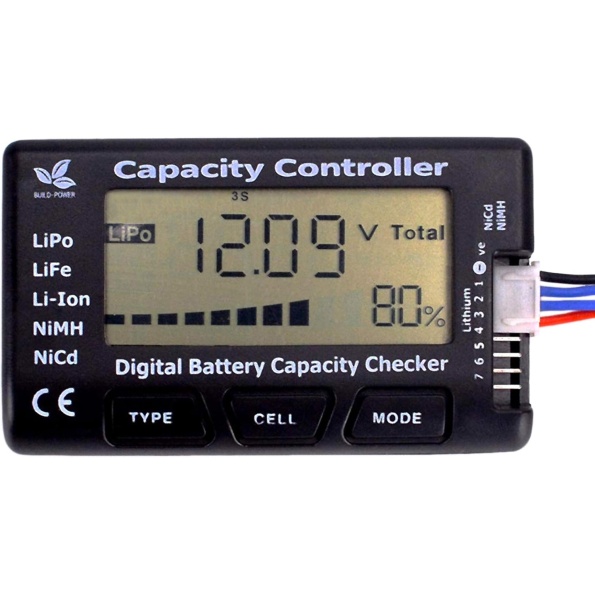

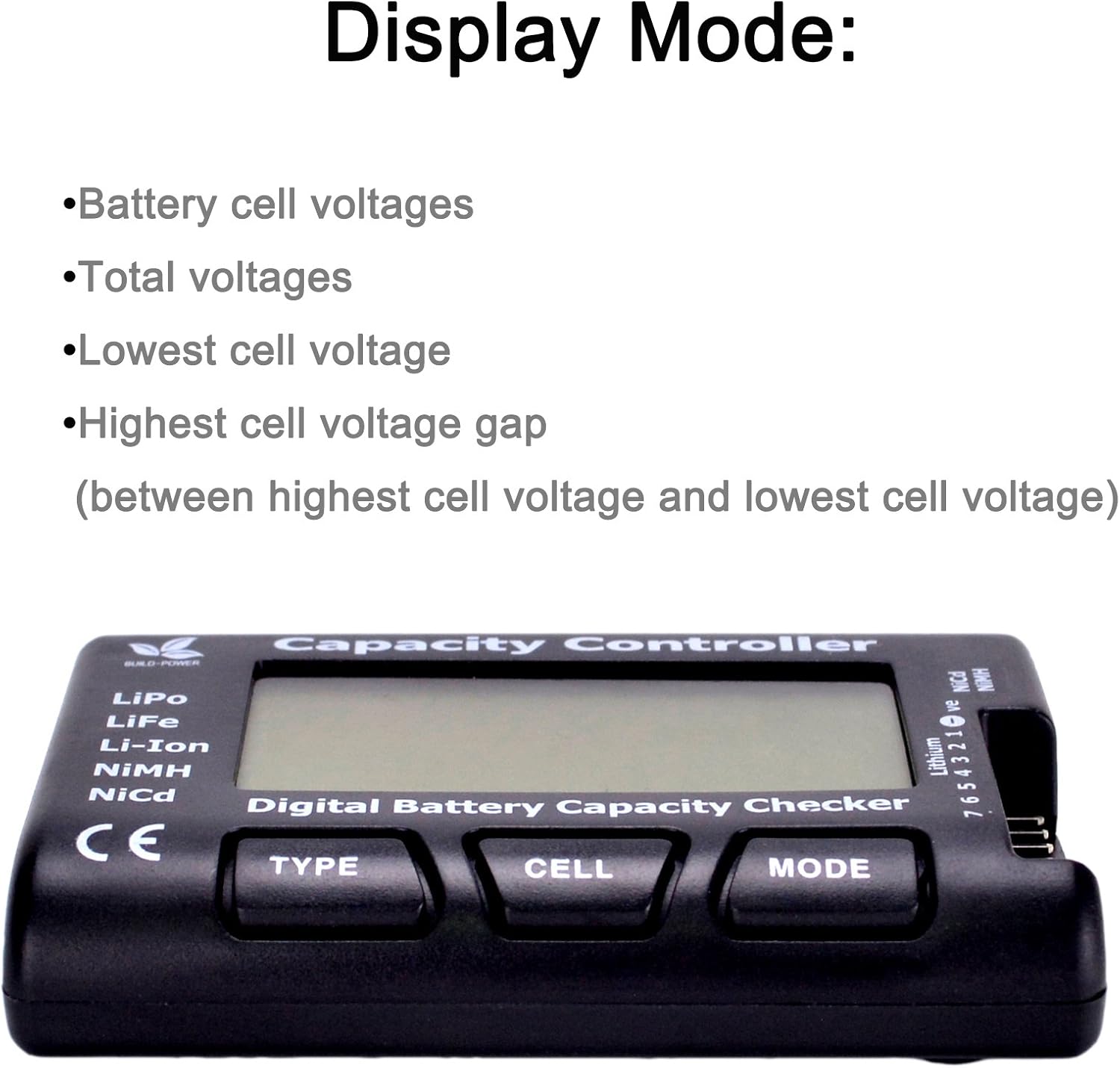

Display Mode:
-Battery cell voltages, Total voltages, Lowest cell voltage, Highest cell voltage.
-Voltage gap between Highest cell voltage and Lowest cell voltage, Remaining battery capacity (%).

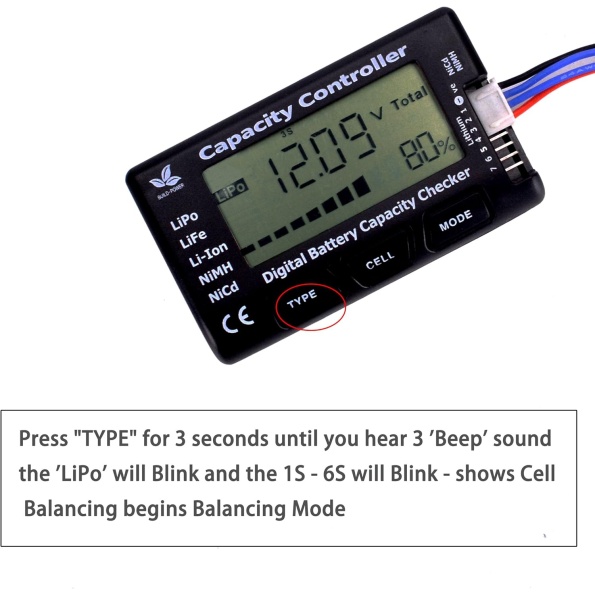

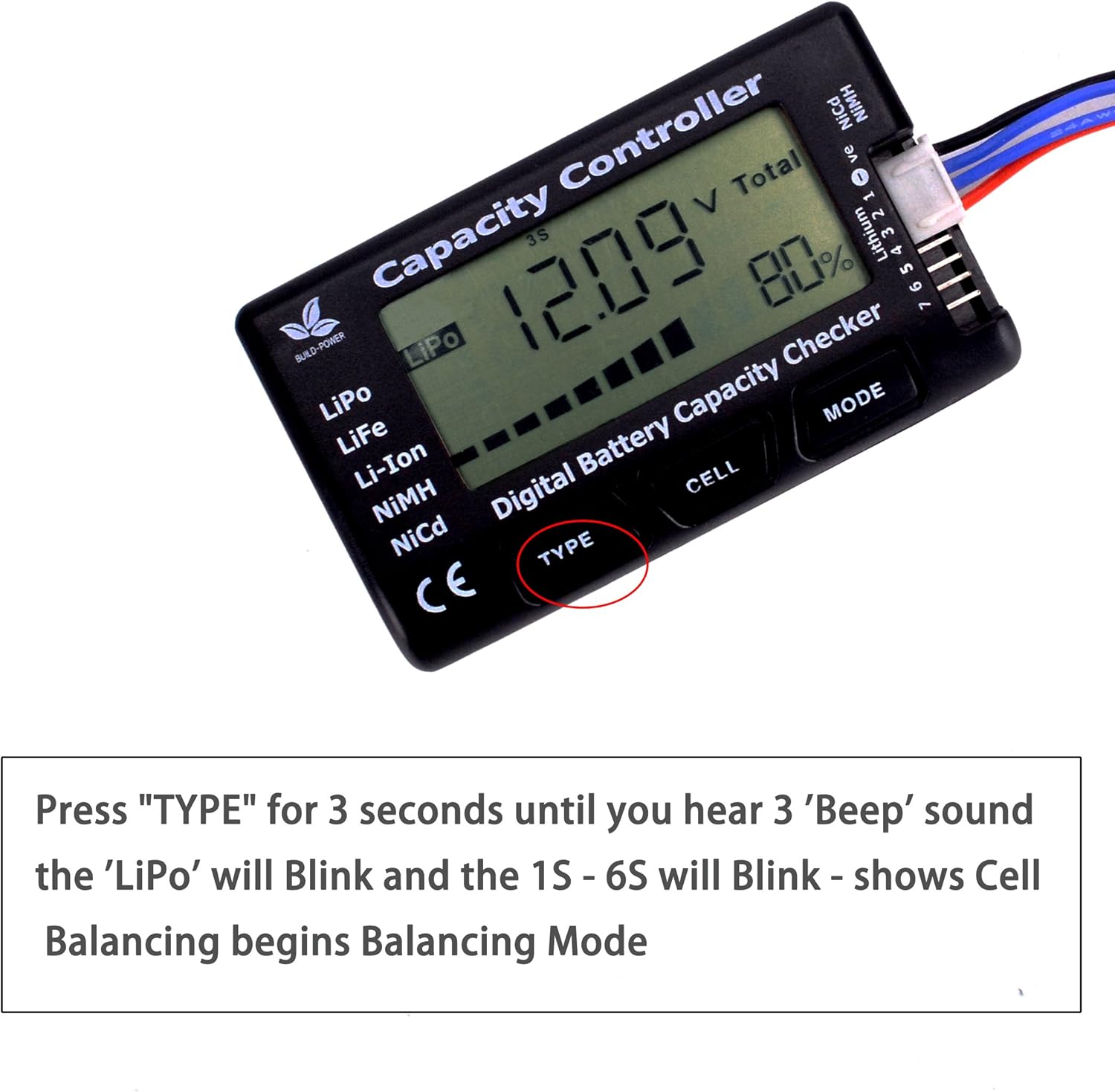

-Press “TYPE” for 3 seconds until you hear 3 ‘Beep’ sound ,the ‘LiPo’ will Blink and the 1S – 6S will Blink – shows Cell Balancing begins Balancing Mode.
-Press “MODE”, it show out TOTAL Voltage, maximum voltage”MAX”, minimum voltage “MIN”, and voltage difference “MAX-MIN”.

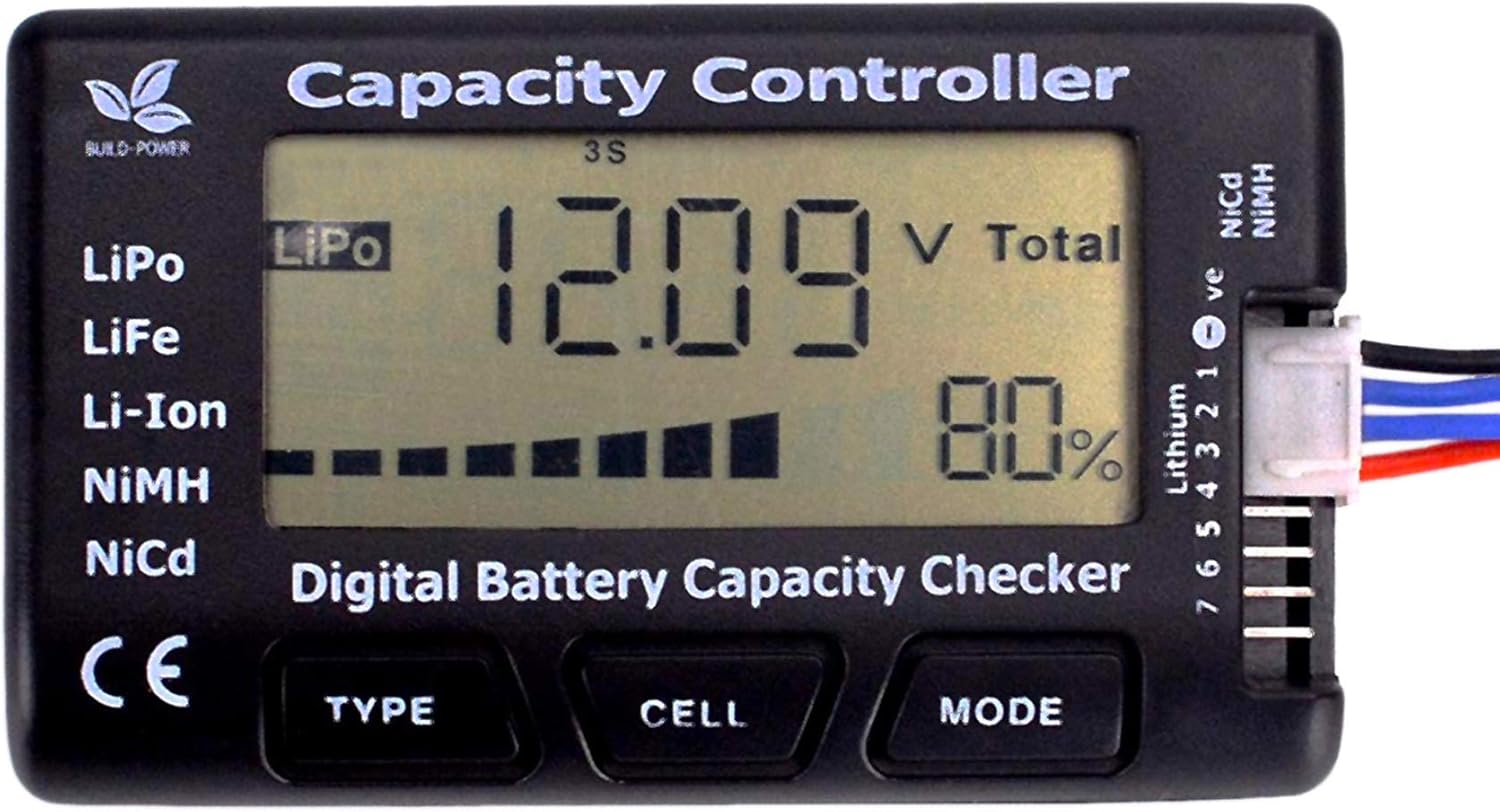

-Press “CELL”, you can see the voltage and power of each cell, the total voltage and the total power.
-During Balancing Mode , the checker will give a bit warmer temperature.
-All the products have been tested before shipping, if you have any problem, please don’t hesitate to contact with us.
Package :
1 piece of Version 2 Cellmeter-7 Digital Battery Checker

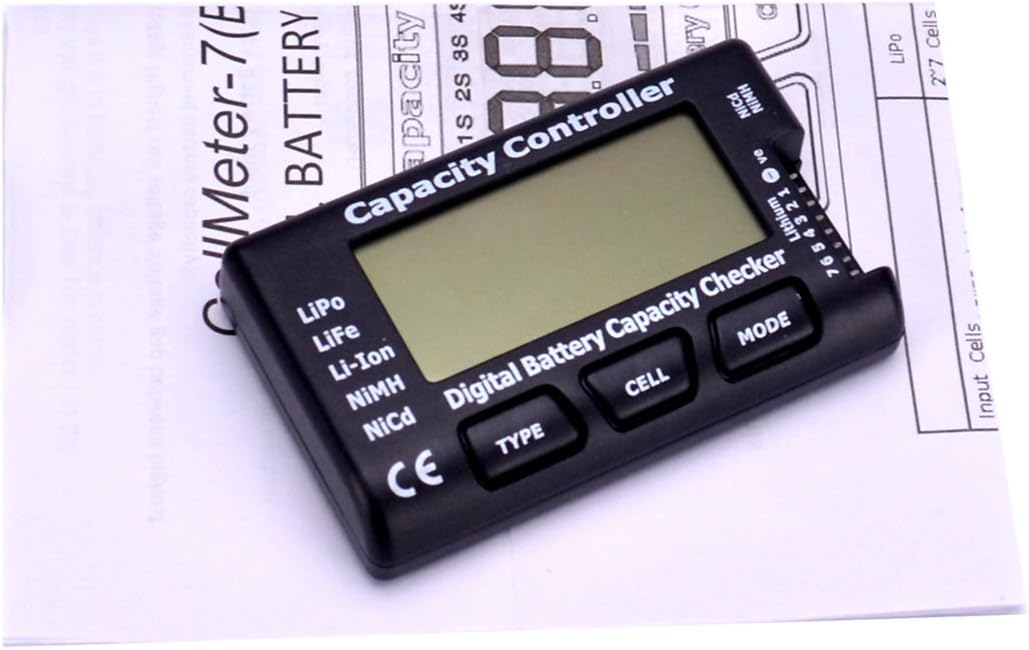

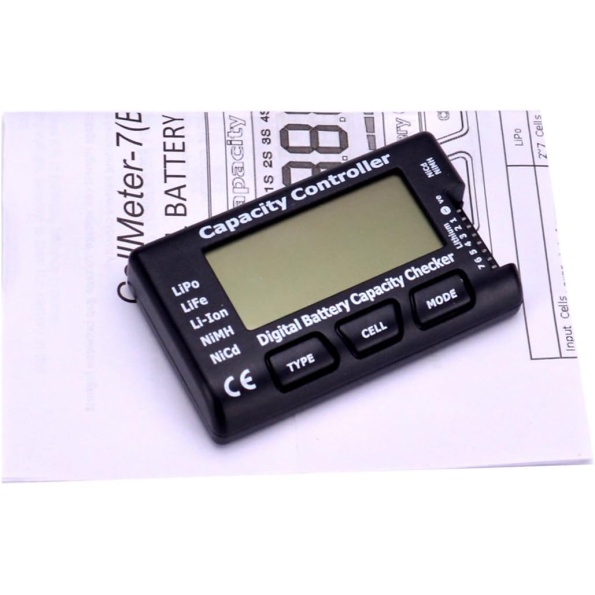

1 piece of instruction paper
(LiPO Battery and cable in the picture not included )
Use for lipo life li-ion nimh nicd battery.
Applies to check the batteries.It’s very handy to read your cell voltage.
High quality, safe and durable,tiny and compact,easy to figure out and to use.
Cell Number: NiCd / NiMH (4 – 7 Cells), Lithium Type (2 – 7 Cells).
Display Mode: Battery cell voltages,total voltages,lowest cell voltage, Highest cell voltage gap between highest cell voltage and lowest cell voltage, Remaining battery capacity(%)
