TPMS Relearn Tool for GM, Auto Tire Pressure Monitor Sensor Activation Reset

Product Description

EL-50448 TPMS relearn tool works on most GM Vehicles (GMC / Chevy / Buick / Cadillac / Opel from 2006-2021, Cars, SUV, Pickup) equipped with 315 or 433 MHz Tire Pressure Monitor system (TPMS) sensor. It is an essential tool of replacement tire pressure sensor, tire pressure alarm remove or exchange tires.

Applicable Models:

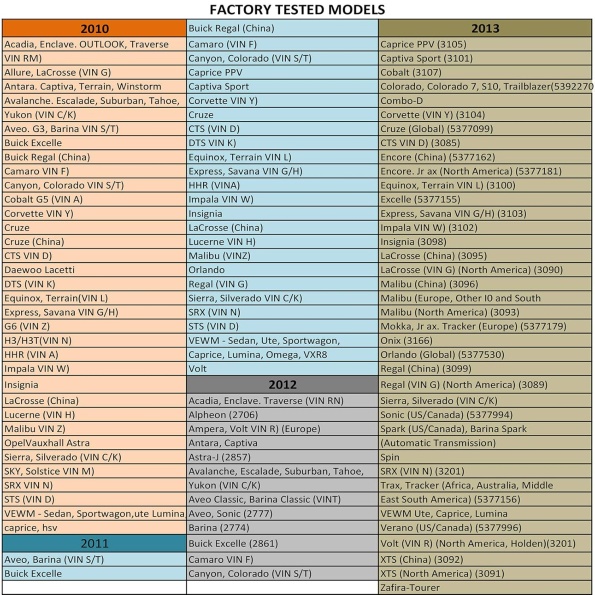

Factory Tested Models:

2006-2020 For almost all GM Series vehicles: Buick, Cadillac, Chevy, GMC,Opel

2010: Acadia, Enclave. OUTLOOK, Traverse (VIN R/V) ,Allure, LaCrosse (VIN G),Antara. Captiva, Terrain, Winstorm, Avalanche. Escalade, Suburban, etc.

2011: Astra,Avalanche. Escalade, Suburban, Tahoe, Yukon (VIN C/K),Aveo, Barina (VIN S/T),Buick Excelle,Buick Regal (China),Camaro (VIN F),Canyon, etc.

2012: Camaro (VIN F),Canyon, Colorado (VIN S/T),Caprice PPV,Captiva Sport,Chevrolet Cobalt (2809),Colorado (Other IO), S10 (South America),Corvette.etc.

2013: Barina (5376837),Camaro (VIN F) (3106), Caprice PPV (3105),Captiva Sport (3101),Cobalt (3107),Colorado, Colorado 7, S10, Trailblazer (5392270),Combo-D,Corvette (VIN Y) (3104).etc.

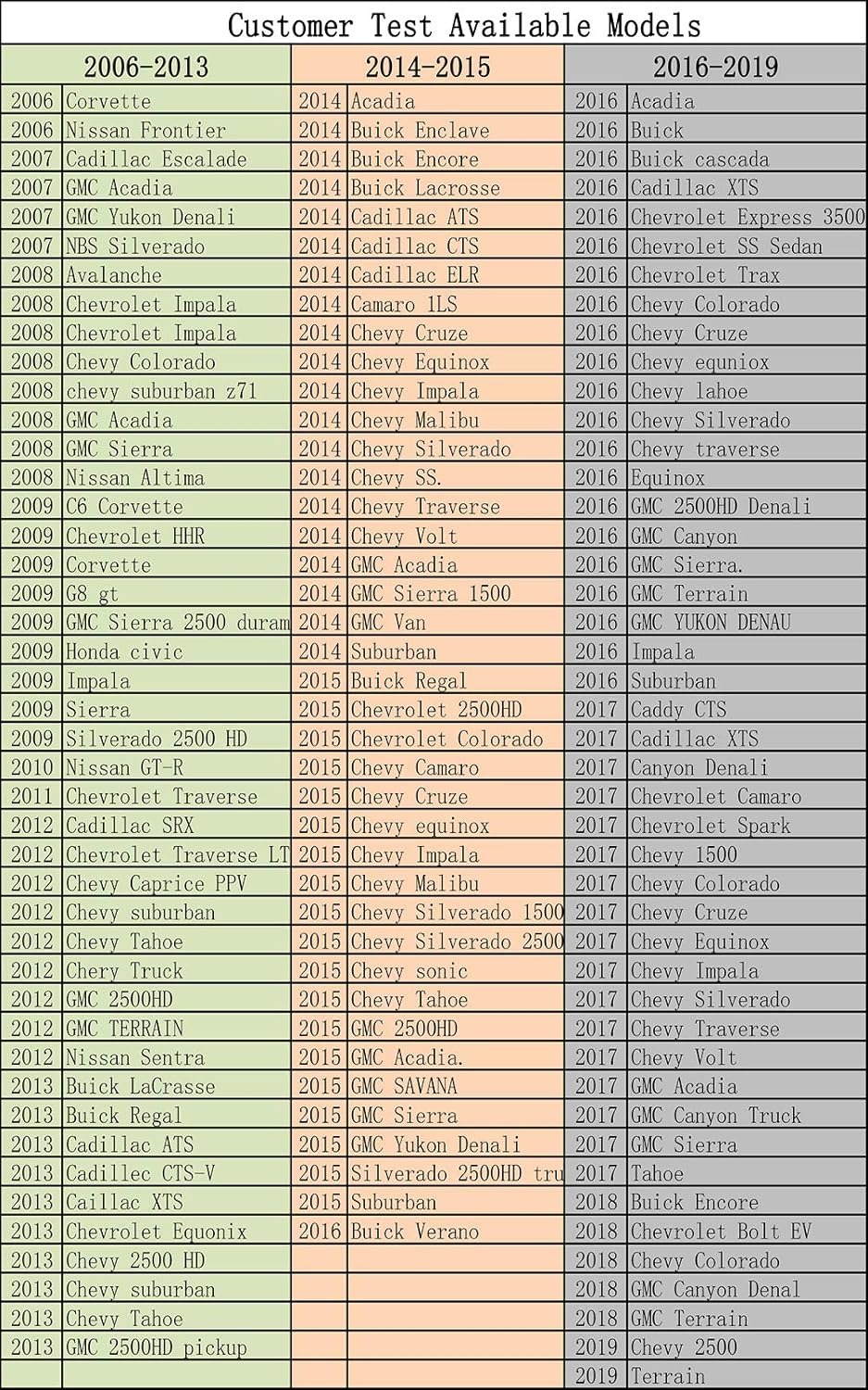

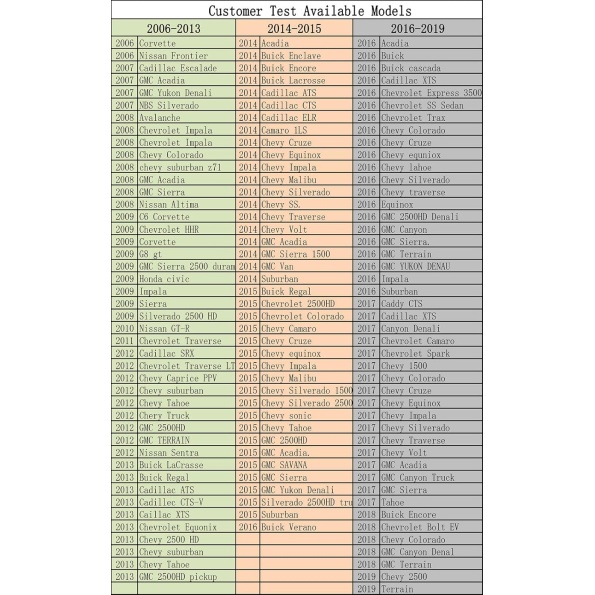

Customer test available models:

2006-2013: Corvette,Nissan Frontier,Cadillac Escalade,GMC Yukon Denali,NBS. etc

2014-2015: Buick Lacrosse,Chevy Volt,Chevy SS.Chevy Cruze,Chevy Equinox,Chevy Silverado. etc

2016-2018: Acadia,Buick,Buick cascada,Chevy lahoe,Chevy Cruze,Chevy equniox.etc

Not applicable: 2016-2018 Chevy Colorado

How to enter to car TPMS learning mode?

1. Turn on the ignition, make the gear in P position.

2. Use cruise function, choose TPMS leaning mode in the dashboard settings.

3. The car horn will beep twice and the TPMS indicator flashes, then the learning mode has been successfully entered.

How to use this EL-50448 TPMS relearn tool ?

1. Put a 9v battery into the tool, and set the car into learning mode, then the car horn will sound twice.

2. Start from the left front tire, make the EL- 50448 antenna up against the tire sidewall around the valve core position. Press the start switch, the tool starts to read tire pressure sensor information. When the horn beeps(finished), the turn signal will light and go to the next tire position.

3. Please follow this order to test all tires: Left front, Right front, Right rear, Left rear. After all sensors have been reseted, the car horn will beep again, the tire pressure relearn is finished.

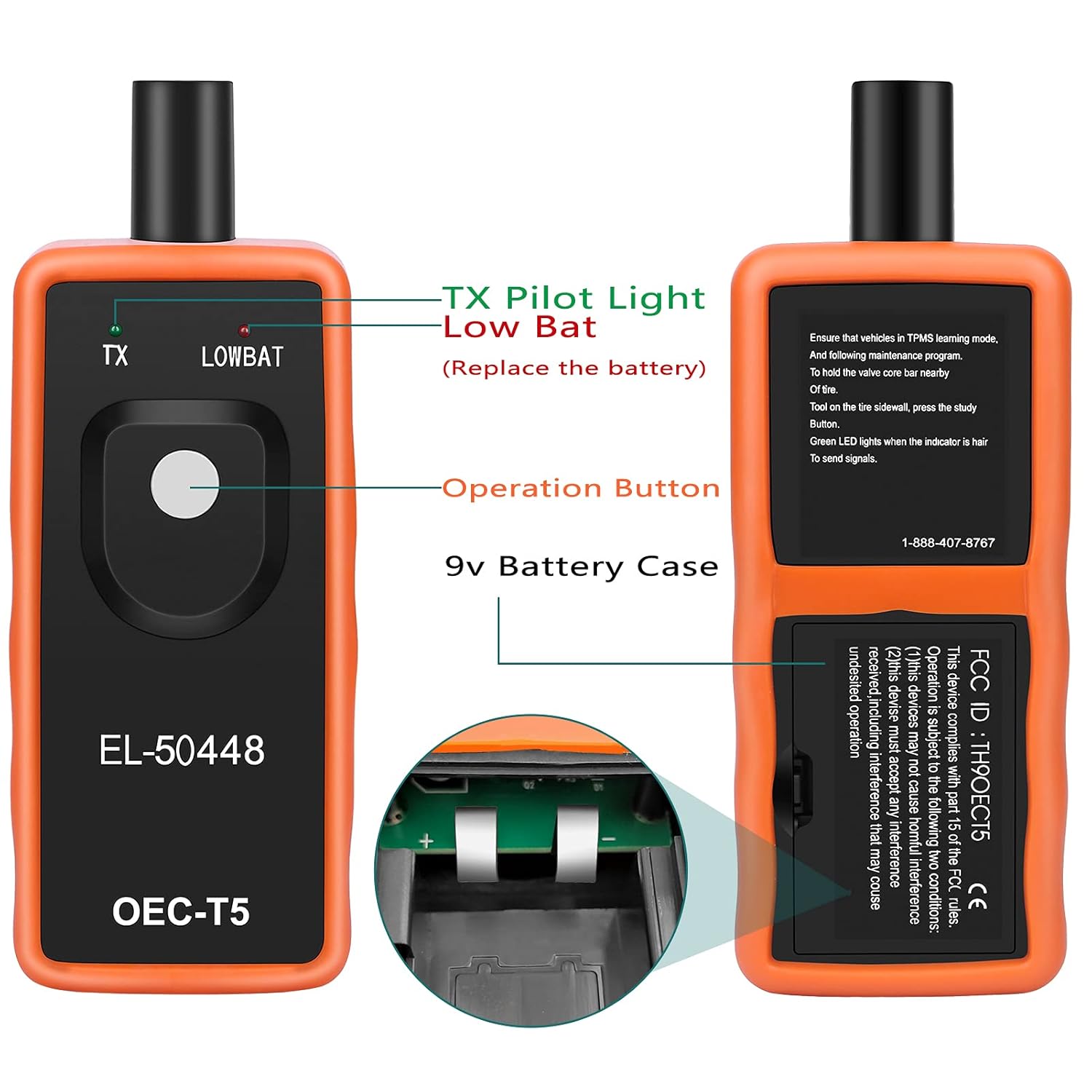

9V Battery Required

Please make sure the 9V battery is with enough power, with this tool, you can easily learn TPMS yourself for your GM vehicle, instead of going to the dealer.

Easy and Fast

This TPMS relearn tool uses a sensitive sensor chip, it runs faster, you just need to press a button and wait for response, quick and easy to use.

Applicable Models

Almost all GM production vehicles equipped with 315 or 433 MHz Tire Pressure Monitor system sensor. (Chevy / Buick / Opel / Cadillac / GMC) from 2006-2020.

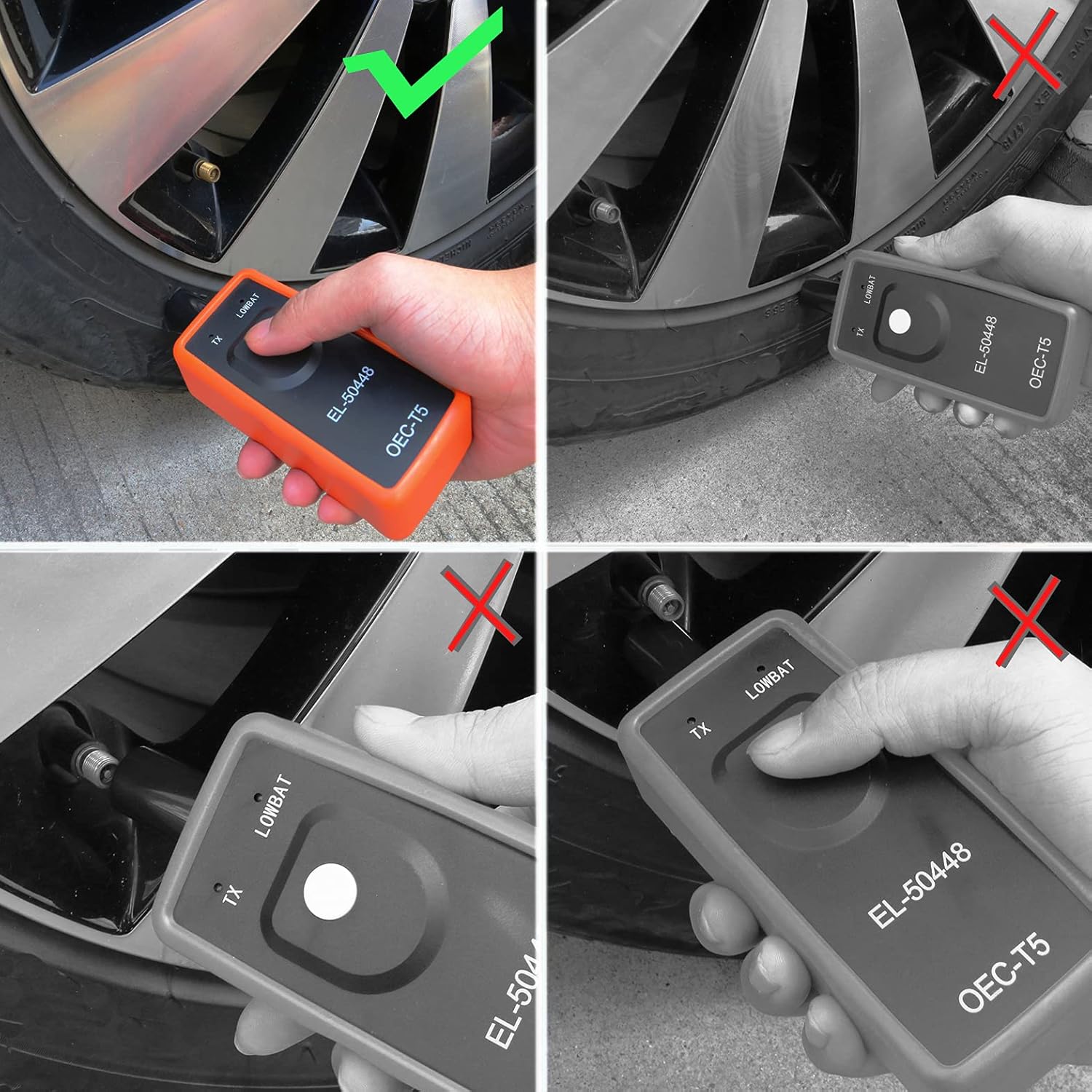

Align in the Right Position

When using this tool, please place the tool antenna on the tire near the valve core position. Do not place it on the valve core or other incorrect positions.

When do you need this TPMS Relearn Tool？

1. Do tire rotation but don’t have a quick and easy way to let ECU relearn new tire information.

2.After New TPMS sensors installed,let air out or add air into the tire but couldn’t make the system recognize new sensors.

3.When the tire pressure indicator lights up, it indicates that the tire pressure needs to be checked and the tire pressure needs to be reset to turn off the TPMS indicator.

4.Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.

Product Dimensions ‏ : ‎ 5.91 x 2.36 x 1.18 inches; 3.84 ounces
Item model number ‏ : ‎ EL-50448
Selling Start Date ‏ : ‎ April 17, 2024
Manufacturer ‏ : ‎ SpassLeben
Stock number ‏ : ‎ TS92SDNZGN
Country of Origin ‏ : ‎ China

TPMS RELEARN TOOL FOR GM: This tire pressure monitor system relearn tool is compatible with most General Motors equipped with 315 MHz or 433 MHz sensor, including Chevy, Buick, GMC, Opel, Cadillac, etc, from 2006-2024, Cars, SUV, Pickup, Not for Heavy Truck
SAVE YOUR TIME AND MONEY: TPMS reset activation tool can help you reprogram all tires within 1-2 minutes. It is easy and fast to operate, simply press a button to reset the tire pressure monitoring sensor. Saving you money over paying dealer or tire shop
EASY TO USE TIRE RESET TOOL: First, please set your car to tire learning mode, then hold the tool antenna against the sidewall of the tire near the valve stem(sensor), and press the button until the car beeps. If no beeps, please try multiple positions nearby
ESSENTIAL TOOL FOR DRIVING: TPMS relearn tool is an essential tool of replacing tire sensor, clearing tire pressure alarm or changing tires. Please follow this order to reset: Front driver, Front passenger, Rear passenger and Rear driver, and the car will beep twice finally
GOOD BATTERY CONDITION: Please use a 9v 6LR61 battery, not 6F22, as it may display low battery, please don’t worry, this tool can still work in low battery state. A good condition will work more effectively. Battery not included
SATISFACTORY SERVICE GOAL: Our goal is to make customers buy the useful products. If you encounter any problems during use, please contact us at any time and we will reply within 12 hours, we will provide you with the most satisfactory service
